Helical Piles
Helical Piles
What are helical systems

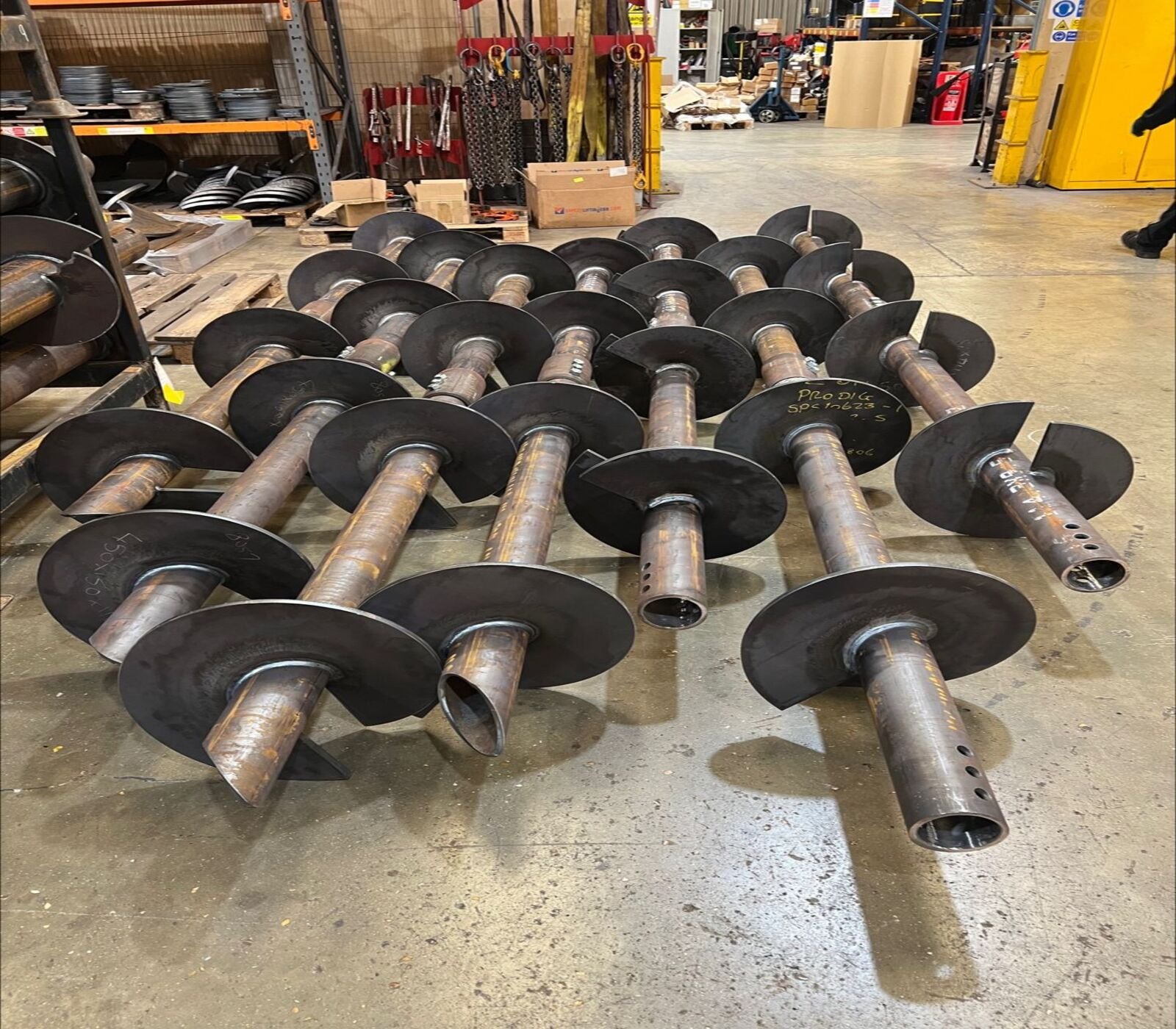

They are a modular geotechnical solution consisting of steel pipe segments with helical bearing plates welded to a central axis.
The first section, known as the lead section, contains the helical plates and is the first to penetrate the ground. It can consist of one to four helices. Smooth extensions are then added until the lead section penetrates the design stratum and the required torque is achieved.
We guarantee the highest strength and torque capacity on the market
Products

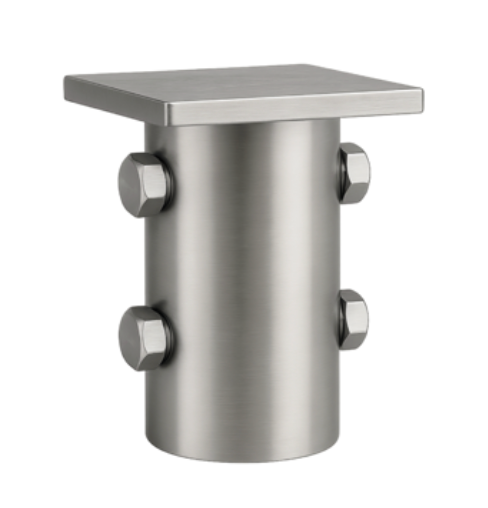

Construction Caps
6”, 7”, 8”, 10” and 12” thick plates 0.5” and 1” thick Designed to withstand compression only, tension only, or both Galvanized or ungalvanized

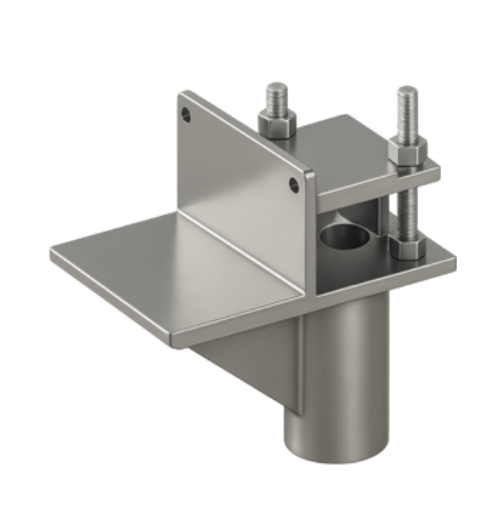

Brackets
6”, 7”, 8”, 10” and 12” thick plates 0.5” and 1” thick Designed to withstand compression only, tension only, or both Galvanized or ungalvanized

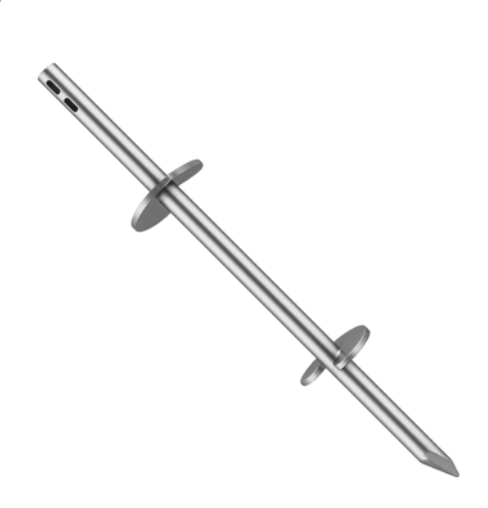

Lead Section
6”, 7”, 8”, 10” and 12” thick plates 0.5” and 1” thick Designed to withstand compression only, tension only, or both Galvanized or ungalvanized

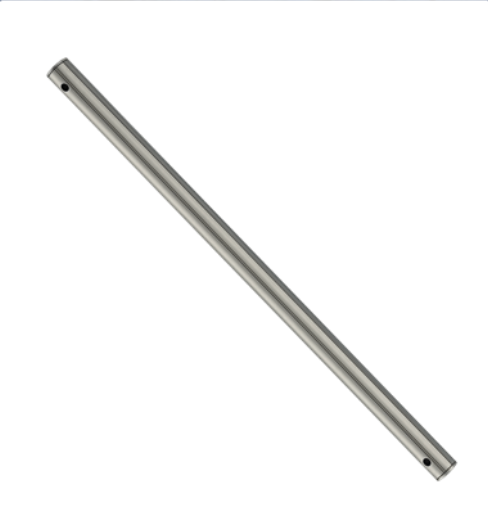

Smooth Extension
6”, 7”, 8”, 10” and 12” thick plates 0.5” and 1” thick Designed to withstand compression only, tension only, or both Galvanized or ungalvanized
Benefits
Modular: Quick on-site adjustments to achieve the desired capacity. Facilitates mobilization and reduces logistics costs. Clean and easy installation with light machinery.
Installation speed of 28 m/hr. No pre-drilling required. Immediate installation even in adverse weather conditions. Versatile: Can be installed in all types of soil, including expansive soils.
Immediate load-bearing capacity without the need for curing (concrete/grout). Possibility of installation in an inclined orientation for walls or lateral loads. Installation torque is measured in real time. Higher torque means higher load-bearing capacity.
Helical piles can be recovered and reused. With a 100-year warranty. They do not require concrete or drilling mud. No noise or vibration. We reduce up to 10 tons of CO2 in each project
Helical Pile Applications
Versatile solutions for projects with complex geotechnical conditions.
Structural Reinforcement
Foundation repair and reinforcement without altering existing structures.
Industrial buildings
Clean installation, without interruption of operation.

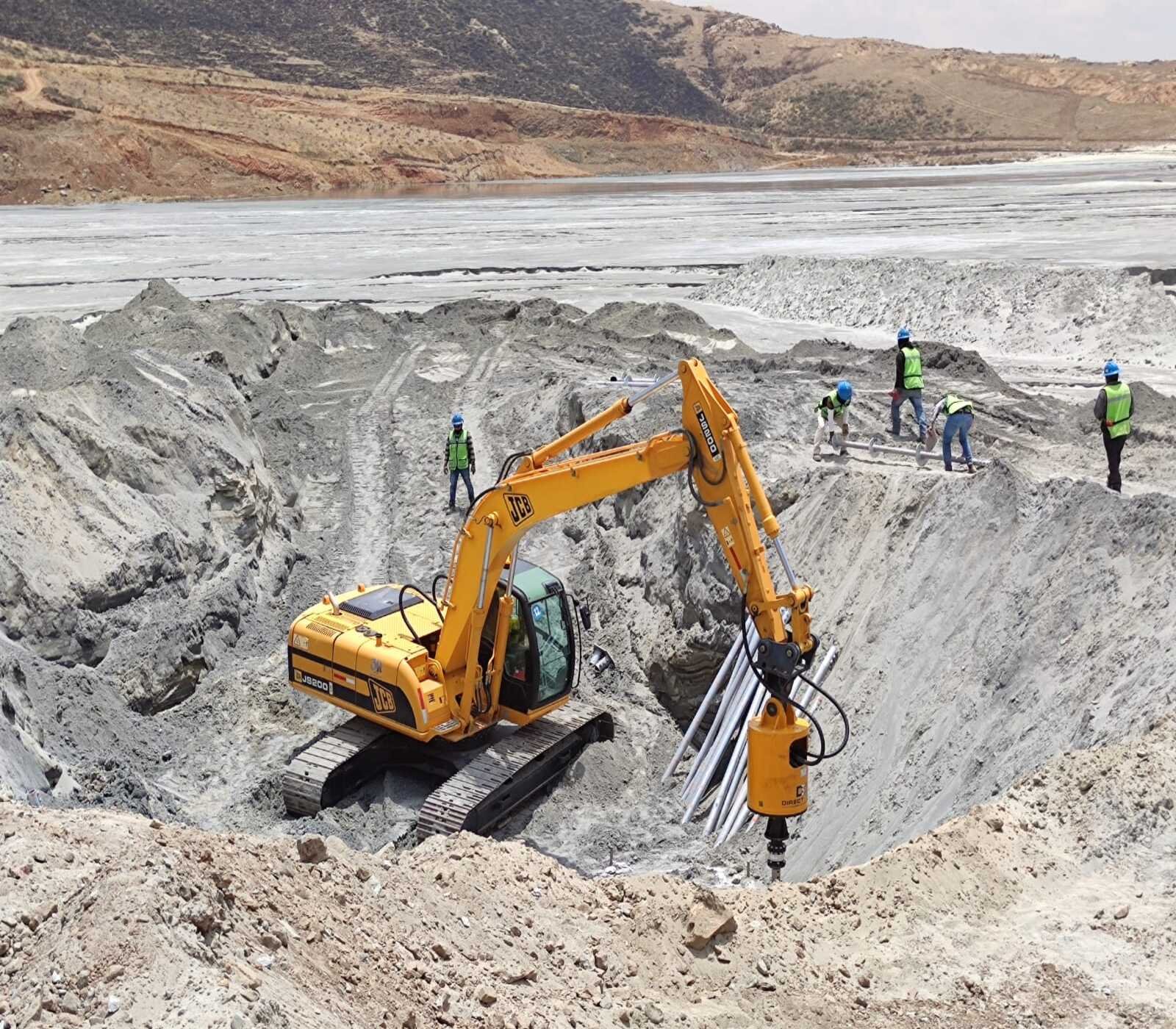

Excavations and Slopes
Secure containment without deep excavation or pumping.
Oil & Gas
Support for pipes, tanks, and pumps in difficult or saturated soils.

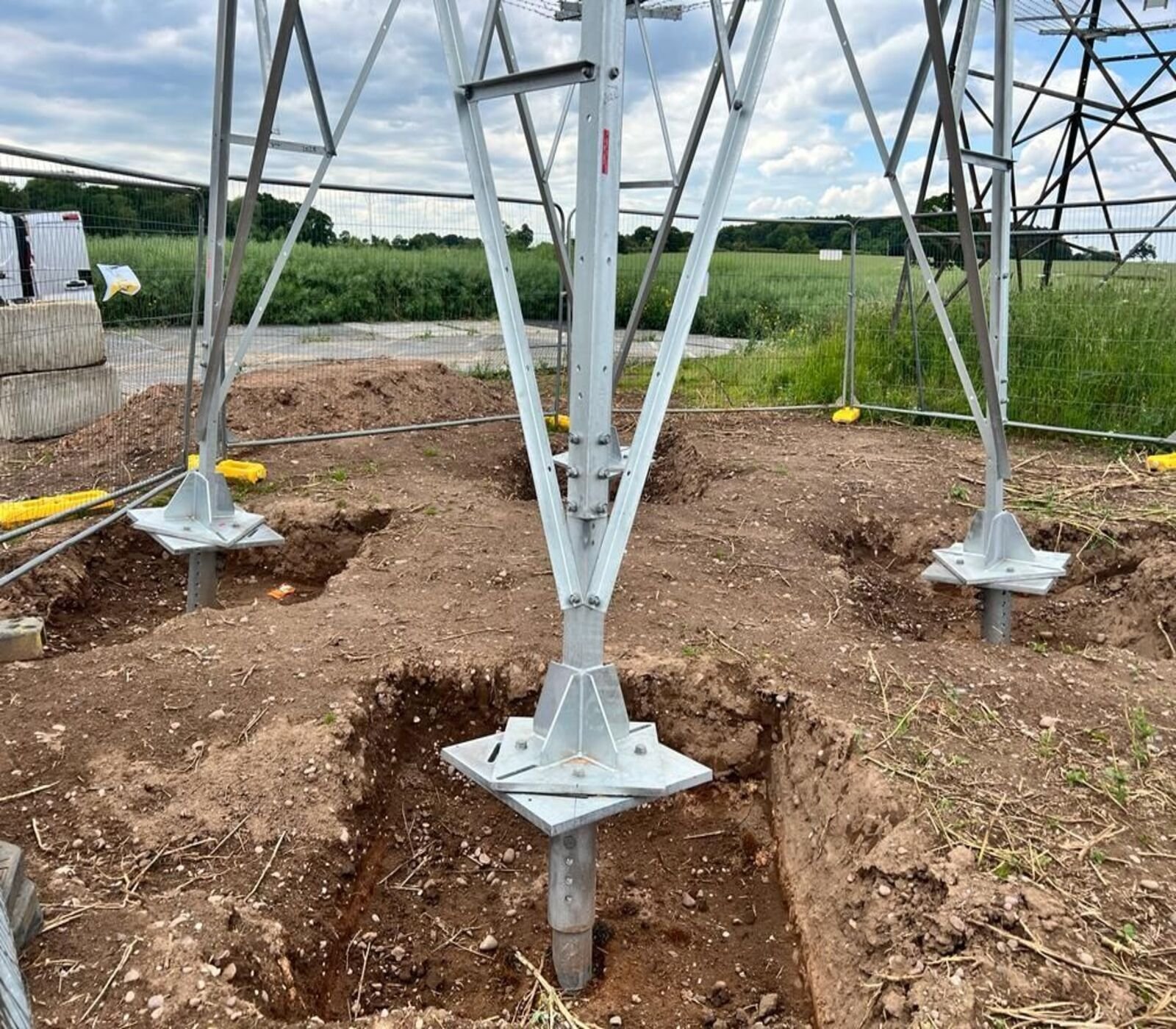

Transmission Towers
Quick installation without concrete. Ideal in remote areas or unstable soil.
Urban or Hard-to-Reach Areas
Low vibration, no noise, no concrete trucks.
